DS-2CE5AD0T-VPIT3F

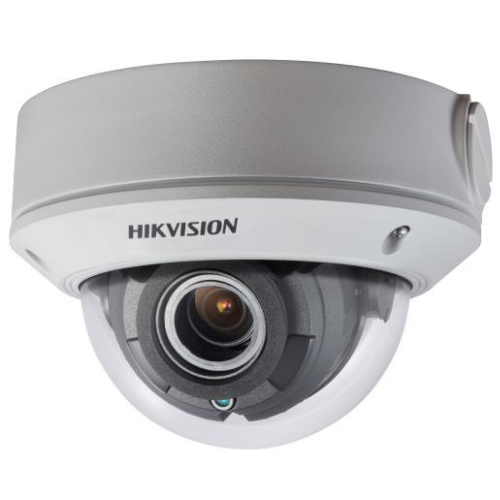

Hikvision DS-2CE5AD0T-VPIT3F


* 2MP 1920×1080 Yüksek Kalite Çözünürlük

* 2.7mm~13.5mm Manuel Varifocal Odaklı Lens

* 40m Gece Görüş IR Mesafesi

* Su ve Toza Dayanıklı (IP67) ve Darbeye Dayanıklı (IK10)

Camera :

Image Sensor : 2 MP CMOS

Signal System : PAL/NTSC

Max. Resolution : 1920(H)×1080(V)

Frame Rate :

TVI: 1920x1080@30fps, 1920x1080@25fps

AHD: 1920x1080@30fps, 1080P@25fps

CVI: 1920×1080@30 fps, 1080P@25fps

CVBS : PAL/NTSC

Min. Illumination : 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR

Shutter Time : PAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s

Lens Mount : Φ14

Day & Night : ICR

Angle Adjustment: Pan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°

Lens :

Lens Type : 2.7 mm to 13.5 mm varifocal lens

Focal Length & FOV : Horizontal FOV: 100° to 30°, vertical FOV: 52° to 17°, diagonal FOV: 116° to 34.5°

Illuminator :

Supplement Light Range : IR: Up to 40 m

Image :

Day/Night Mode : Auto/Color/BW (Black and White)

Wide Dynamic Range (WDR) : Digital WDR

Image Parameters Switch : STD/HIGH-SAT

White Balance : Auto/Manual

Image Enhancement : DWDR,BLC,HLC,Global

Noise Reduction : 2D DNR

Language : English

Image Settings : Brightness, Smart IR, Sharpness, AGC

Interface :

Video Output : Switchable TVI/AHD/CVI/CVBS

General :

Power : 12 VDC ± 25%, Max. 5 W

Operating Condition : -40 °C to 60 °C (-40 °F to 140 °F). Humidity 90% or less (non-condensing)

Material : Main Body: Metal, Cover: Plastic

Communication : HIKVISION-C

Dimension : Ø 143mm×106.7mm( Ø 5.62"×4.19")

Weight : Approx. 630 g (1.39 lb.)

Approval :

Protection : IP67
